Windsor Lever Pad

  • Solid die cast aluminium construction with weight balanced spring cassette - The perfect balance between price and performance
  • Compact baseplate with screws in close proximity - Combats lever attack
  • Sculpted ergonomic lever and low friction nylon bush - Easy to grip and smooth action
  • Supplied with screw and spindle pack to suit 60-70mm profiles - Everything needed for installation included
  • Colour coordinated screw heads - Perfectly matching hardware even down to the smallest details
  • Baseplate in common with all Windsor handles - Same routing detail regardless of chosen variant
  • Wide backplate - To suit cylinder guards and accommodate larger cylinder preparation
  • Supplied fully assembled - Simple and quick installation no need to fit springs or lever
  • Supplied with care instructions - Helps the homeowner to keep the hardware in optimal condition
  • Silicon Site-Protectors available - Ensures perfect condition after installation
  • Each part packaged in a separate chamber but supplied as a set - No scratching of parts during transit
  • Technical Specification
  • Designed for PVC-U and Composite doors
  • All finishes salt spray tested to 480 hours (BS EN 1670: Class 5)
  • Tested to 200000 cycles

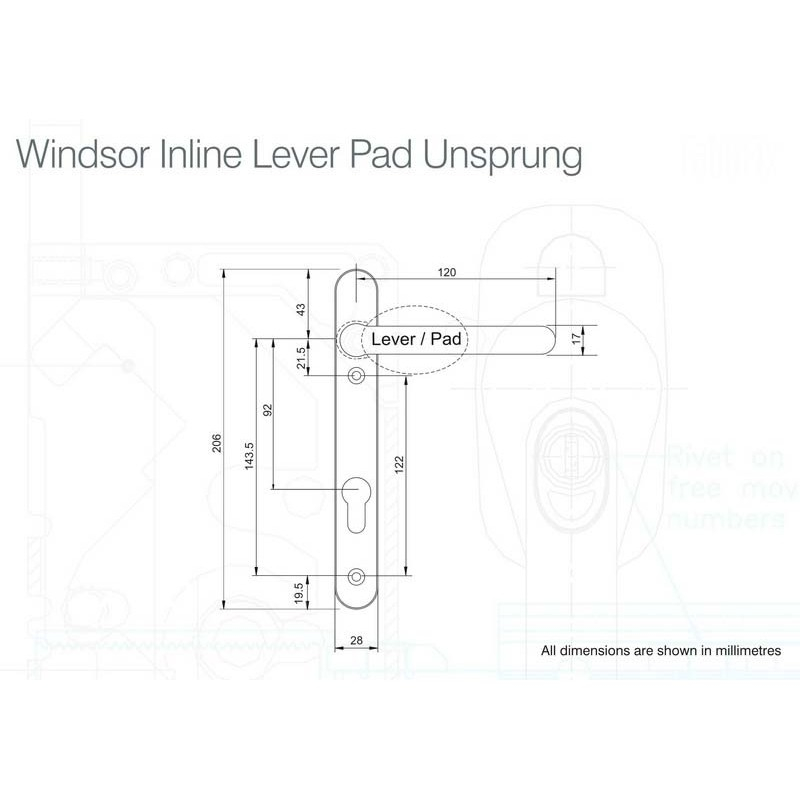

  • 92mm PZ
  • Includes screw and spindle pack suitable for 60mm-70mm profiles (1 x 8mm x 120mm spindle 2 x M5 x 70mm colour coordinated machine screws 2 x M5 x 80mm colour coordinated machine screws)

There are no downloads for this product.

No detailed specifications are available for this product.

Code Description Price Quantity
FAB-1F150 Lever/Inline Pad White 92mm Ctr £18.13 (exc VAT) per Set
FAB-1F155 Lever/Inline Pad Hardex Gold 92mm Ctr £22.66 (exc VAT) per Set
FAB-1F151 Lever/Inline Pad Hardex Chrome 92mm Ctr £22.66 (exc VAT) per Set
FAB-1F152 Lever/Inline Pad Satin silver 92mm Ctr £22.66 (exc VAT) per Set
FAB-1F153 Lever/Inline Pad Hardex Bronze 92mm Ctr £22.66 (exc VAT) per Set
FAB-1F108 Lever/Inline Pad Hardex Graphite 92mm Ctr £27.02 (exc VAT) per Set
