Timber Single Door With Wind Up Operation Lever On Rose Handle Design

This design uses a wind up multipoint door lock operation. The lever handle only operates the spring latch although everything operates with the euro cylinder including the latch. By turning the cylinder three revolutions you engage the locking points. To disengage you turn the cylinder three revolutions in the other direction, by depressing the handle or by turning the cylinder a further quarter turn you release the spring latch this allows the door to open.

Wind Up Lock Lever On Rose Design

 Part Number     Description  Quantity Required
 MA-238352  Door Lock 1
 MA-218141  Hook Keep 2
 MA-218142  Right Hand Latch Keep For 44mm Door

1 Required

 MA-218143  Left Hand Latch Keep For 44mm Door
 MA-226774  Right Hand Latch Keep For 56mm Door
 MA-226775  Left Hand Latch Keep For 56mm Door

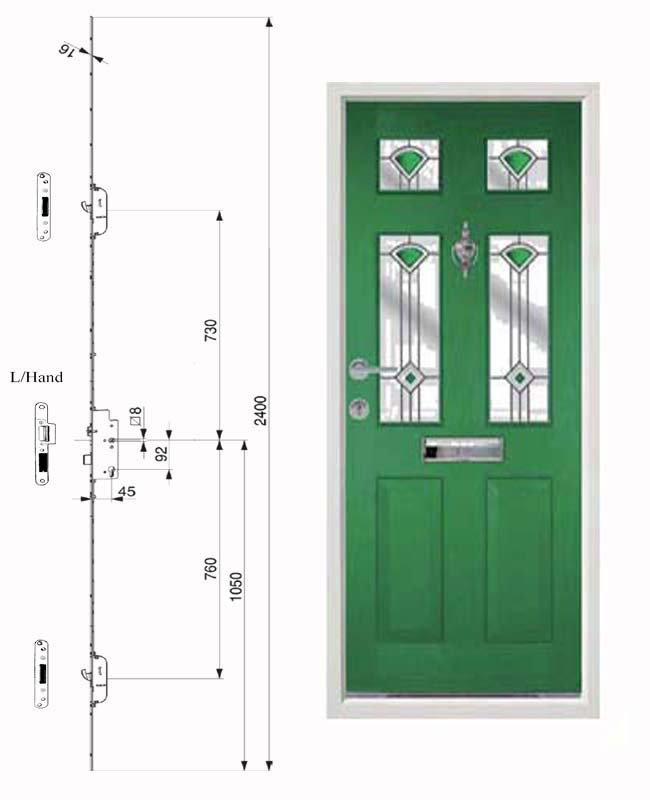

In the table are shown the components required for this type of door operation. To decide which latch keep is required, please see the diagram below:

 Door Handing
