Wind Up Lock With Letterplate

Timber Single Door With Wind Up Operation Letterplate Design

This design uses a wind up multipoint door lock operation. A lever handle is not required, everything operates with the euro cylinder. By turning the cylinder three revolutions you engage the locking points. To disengage you turn the cylinder three revolutions in the other direction, by turning the cylinder a further quarter turn you release the spring latch this allows the door to open. Be aware you do need the key to open this door.

Wind Up Lock Letterplate Design

 Part Number     Description  Quantity Required
 40-01-05-0900  Door Lock 1
 40-10-01-0750  Hook Keep 2
 40-10-01-0780  Right Hand Latch Keep For 44mm Door

1 Required

 40-10-01-0810  Left Hand Latch Keep For 44mm Door
 40-10-01-0840  Right Hand Latch Keep For 56mm Door
 40-10-01-0870  Left Hand Latch Keep For 56mm Door

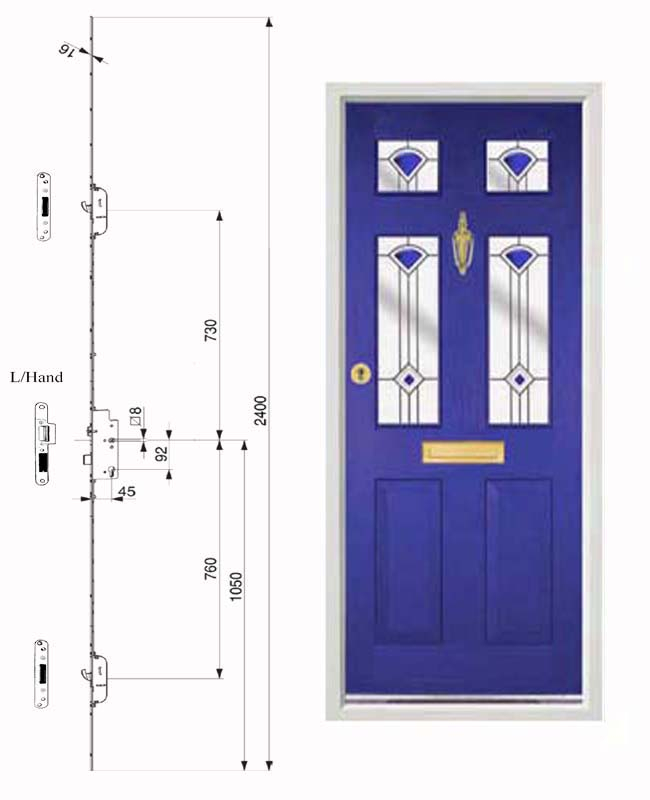

In the table are shown the components required for this type of door operation. To decide which latch keep is required, please see the diagram below:

 Door Handing
