Standard Door Lift Lever

Timber Single Door With Lift Lever Handle Operation

Here we have the most common type of multipoint door lock operation. You lift the lever to engage the locking points and turn the key. This stops the handle from being depressed and disengaging the locking points. Unlocking the key cylinder, enables the handle to be depressed. This disengages the locking points and pushing the handle down also releases the latch to allow the door to open.

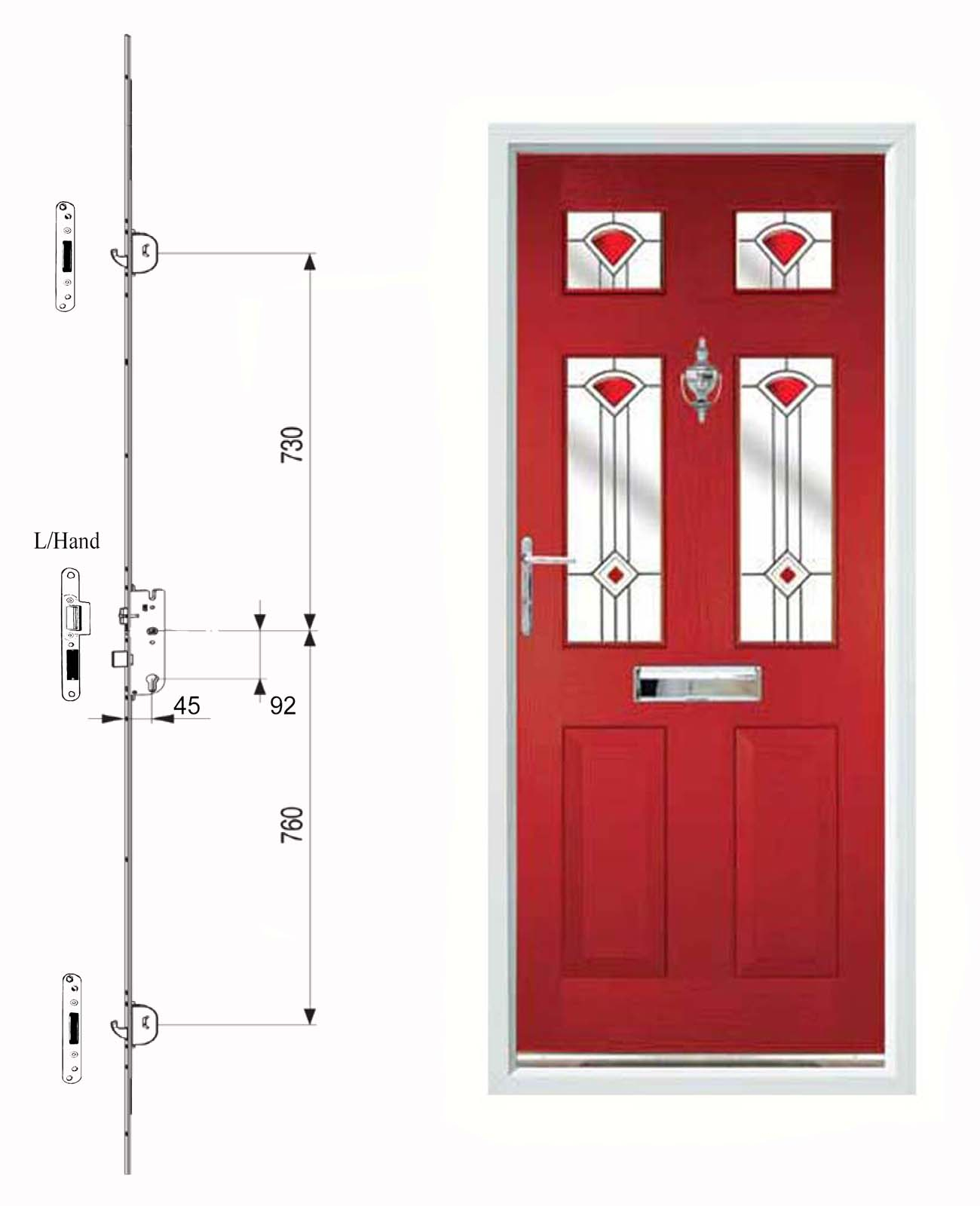

Type A Door And Lock with Keeps

 Part Number     Description  Quantity Required
 40-01-05-0570  Door Lock 1
 40-10-01-0750  Hook Keep 2
 40-10-01-0780  Right Hand Latch Keep For 44mm Door

1 Required

 40-10-01-0810  Left Hand Latch Keep For 44mm Door
 40-10-01-0840  Right Hand Latch Keep For 56mm Door
 40-10-01-0870  Left Hand Latch Keep For 56mm Door

In the table are shown the components required for this type of door operation. To decide which latch keep is required, please see the diagram below:

 Door Handing
