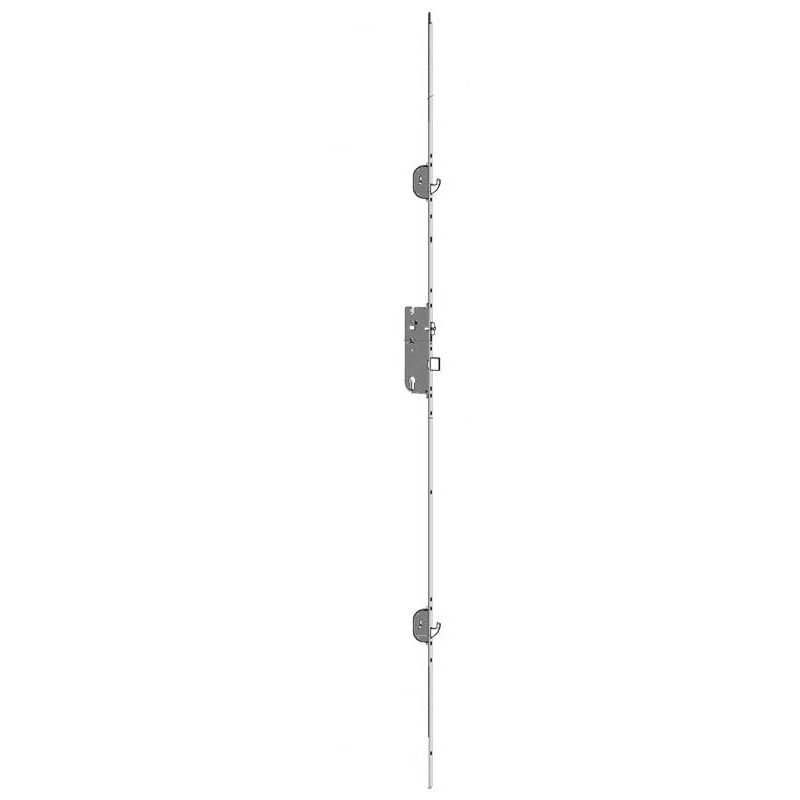

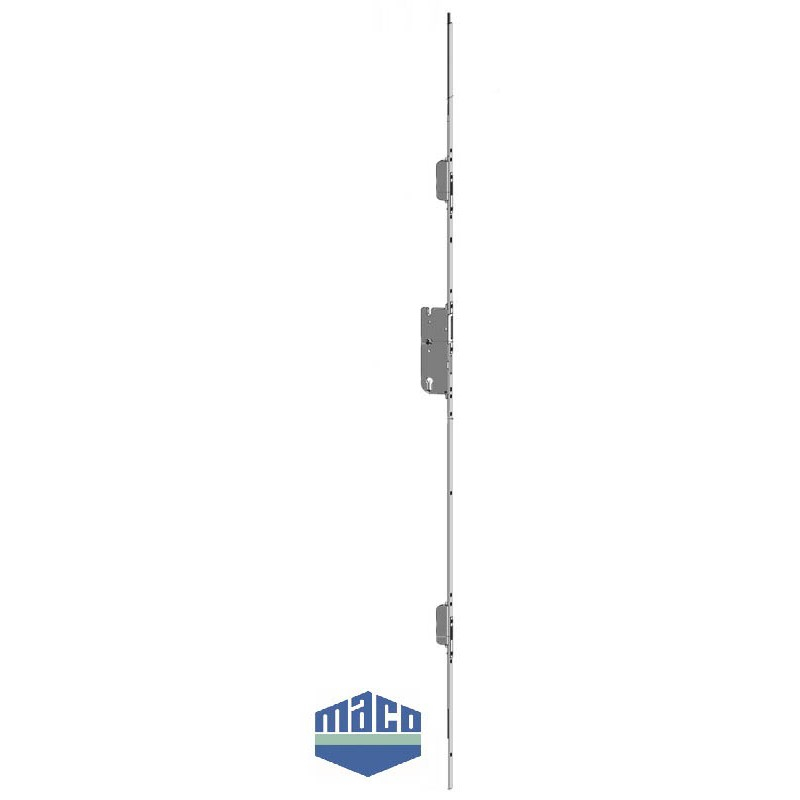

Rebate French Door Locks

45mm Backset. 92mm Centres 1800mm long 20mm wide faceplates. 2 Hooks, latch & Deadbolt on Master Lock faces Slave Lock which has the keeps for both locks to engage together. 3 choices of top shootbolt extension sizes are available to make different height doors, along with the 120mm bottom shootbolts. The keeps on the slave do have compression adjustment. Highly secure multipoint locking system. Smaller compact central lockcase. The dead bolt is operated from the lever handle reducing the force required to lock the door. MACO easy latch reduces noise and the force required to latch the door. MACO easy latch release ensures a simple reversal process without the need for tools.

Click on any of the following links to download the file.

No detailed specifications are available for this product.

Code Description Price Quantity
MA-244373 Master Lock 2 Hooks Latch & D/bolt 1800mm 45mm B/Set £51.01 (exc VAT) Each
MA-244393 Slave Lock 21mm Snib 1800mm 45mm 92mm Ctr £61.64 (exc VAT) Each
