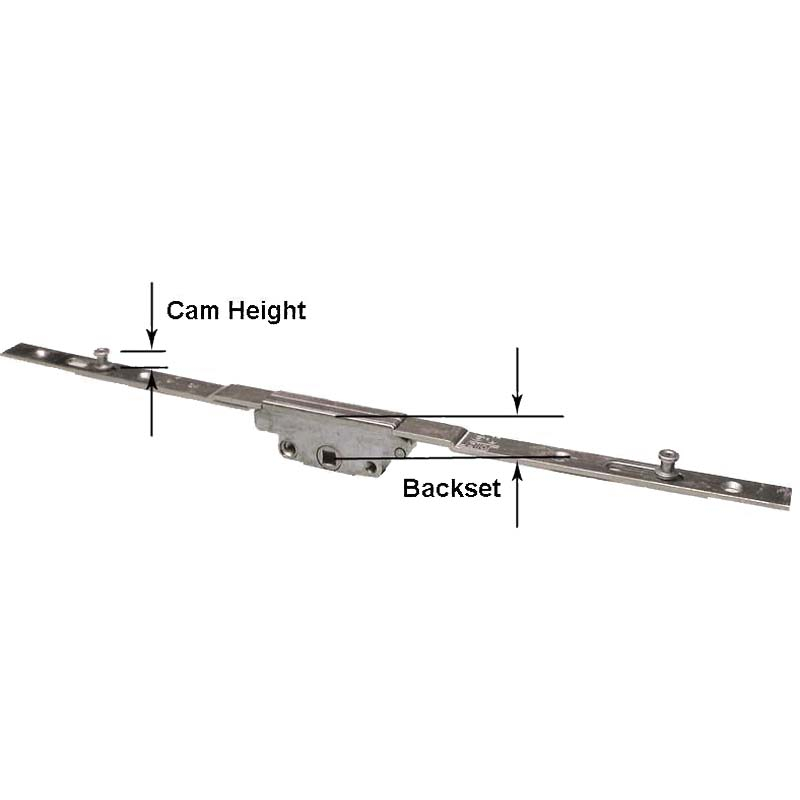

20mm Backset 7.7mm Cam Offset Espagnolette
- MACO mushroom bolt espagnolettes for outward opening windows incorporate all the benefits of safety and security expected of modern window technology in today´s environment.
- The total lock case depth is only 7 mm more than the backset.
- Fully adjustable mushroom locking bolts.
- Profile designated striker plates with night vent position.
- Designed for slimline profiles.
- Mushroom bolts throw 19 mm.
- The mushroom bolts are adjusted by using a 4 mm allen key.
- When locating the stiker plates, line up the centre of the mushroom bolt (when in the closed position) to the mark on the striker plate.
Click on any of the following links to download the file.
No detailed specifications are available for this product.
