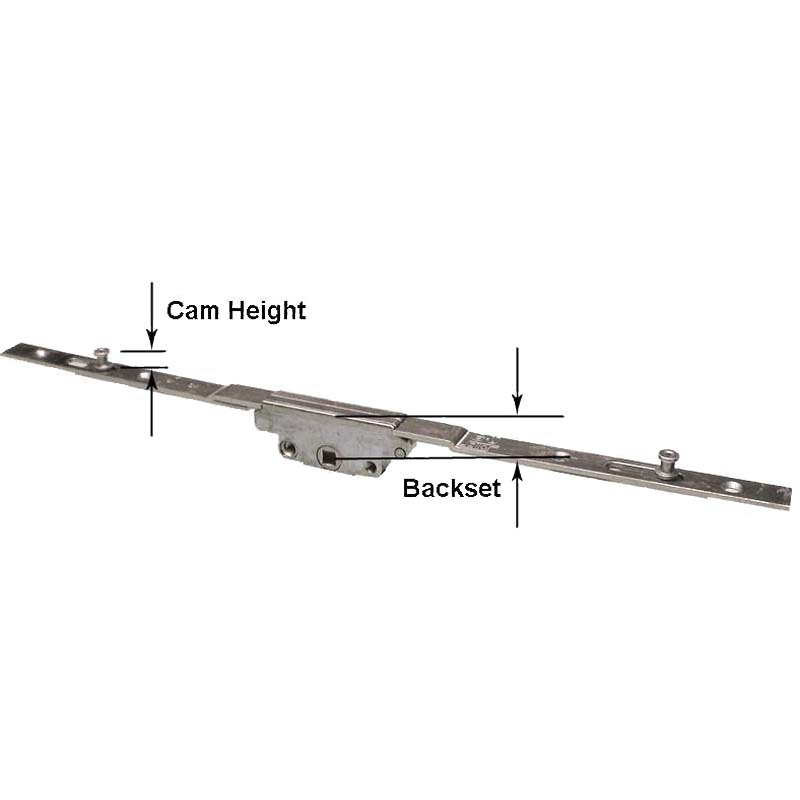

22mm Backset 7.7mm Cam Maco Espagnolette
22mm Backset 7.7mm Cam Maco Espagnolette

22mm Backset 7.7mm Cam Maco Espagnolette

  • MACO mushroom bolt espagnolettes for outward opening windows incorporate all the benefits of safety and security expected of modern window technology in today´s environment.
  • The total lock case depth is only 7 mm more than the backset.
  • Fully adjustable mushroom locking bolts.
  • Profile designated striker plates with night vent position.
  • Designed for slimline profiles.
  • Mushroom bolts throw 19 mm.
  • The mushroom bolts are adjusted by using a 4 mm allen key.
  • When locating the stiker plates, line up the centre of the mushroom bolt (when in the closed position) to the mark on the striker plate.

Click on any of the following links to download the file.

No detailed specifications are available for this product.

Code Description Price Quantity
MA-58490 Maco Mushroom Espag 100mm 22mm 7.7mm, 2 keeps reqd £3.67 (exc VAT) Each
MA-58496 Maco Mushroom Espag 260mm 22mm 7.7mm, 2 keeps reqd £2.97 (exc VAT) Each
MA-58504 Maco Mushroom Espag 400mm 22mm 7.7mm, 2 keeps reqd £3.20 (exc VAT) Each
MA-58511 Maco Mushroom Espag 600mm 22mm 7.7mm, 2 keeps reqd £3.89 (exc VAT) Each
MA-58518 Maco Mushroom Espag 800mm 22mm 7.7mm, 2 keeps reqd £4.54 (exc VAT) Each
MA-58525 Maco Mushroom Espag 1000mm 22mm 7.7mm, 3 keeps reqd £5.42 (exc VAT) Each
MA-58530 Maco Mushroom Espag 1200mm 22mm 7.7mm, 3 keeps reqd £6.39 (exc VAT) Each
