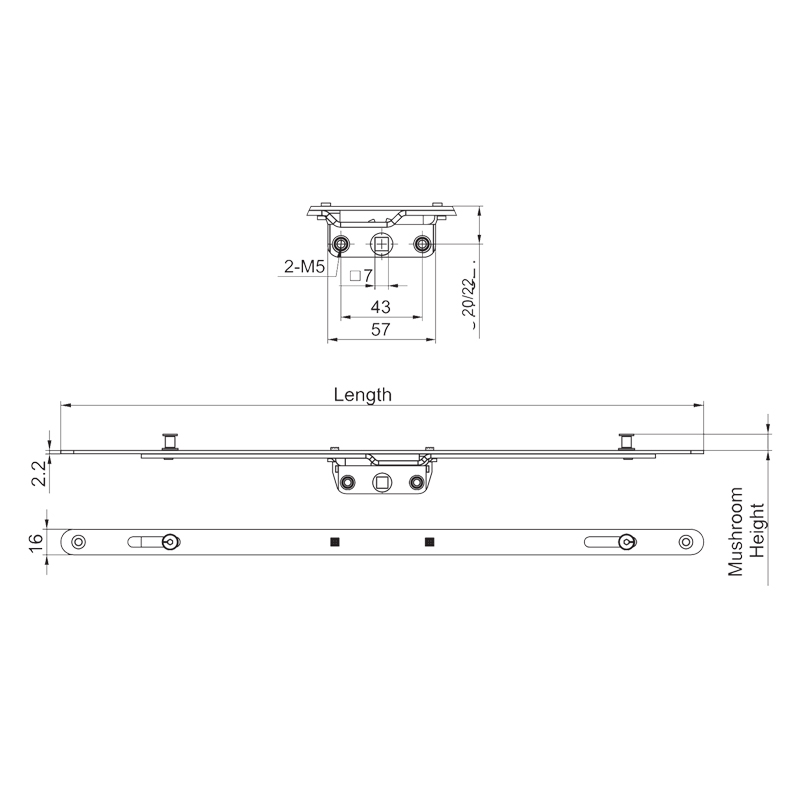

22mm Backset 7.7mm Cam Espagnolette
- Standard mushroom bolt espagnolettes for outward opening windows
- Fully adjustable mushroom locking bolts.
- Profile designated striker plates with night vent position.
- Six different lengths
- Non handed, simply turn round 180 degrees
- The espag is silver passivated to 20-25 microns, achieving 240 hours neutral salt spray test results
- Flat 16mm faceplate with radiused ends
- Equally suitable for fitting into a standard full length 16mm Eurogroove or timber manufacturers can opt to rout just the length of the espag
- The inline gearbox resists a minimum 40Nm torque loading
- The compression for the mushroom bolts is adjusted by using an allen key.
